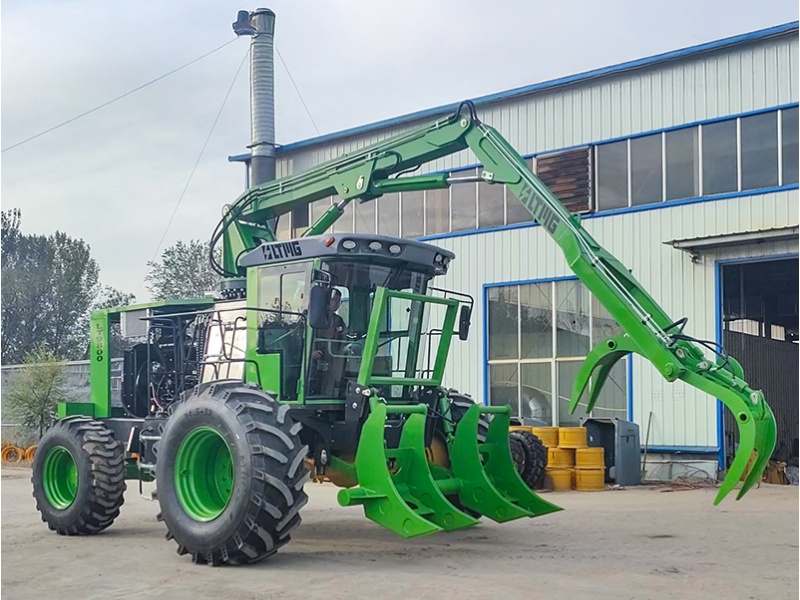

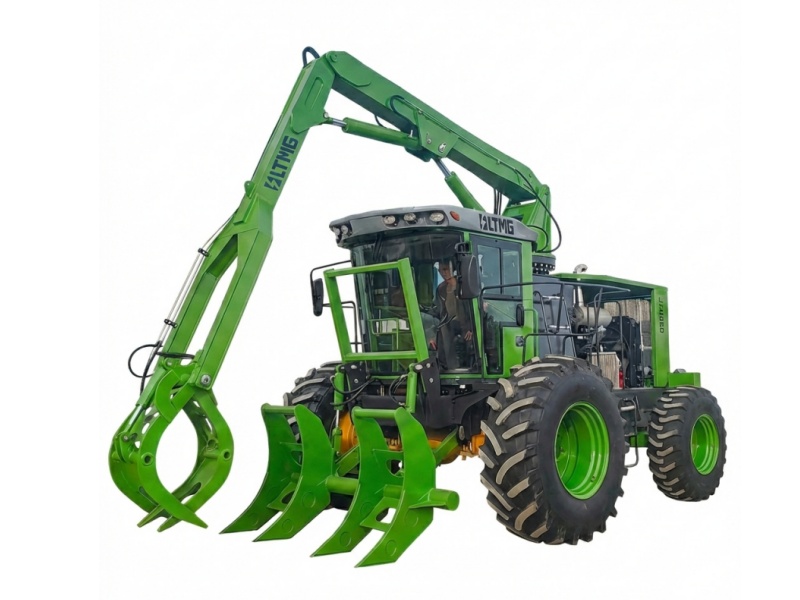

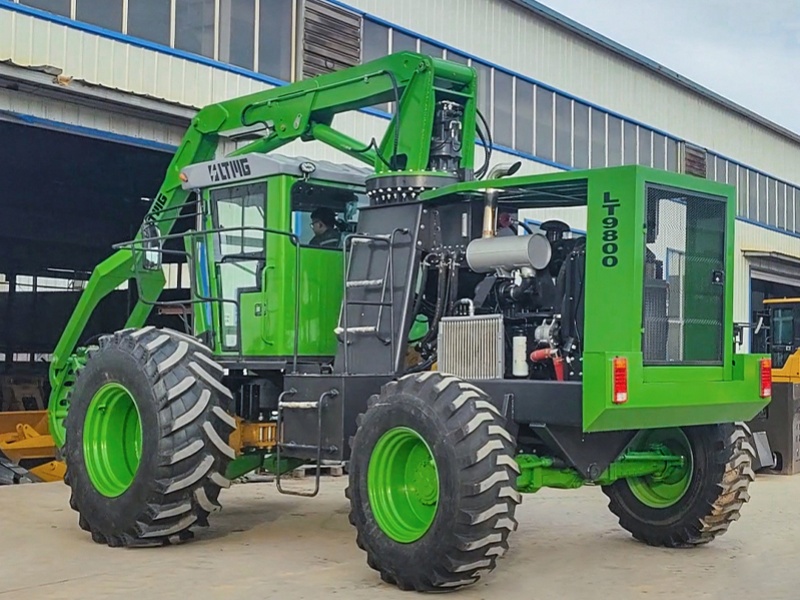

This sugarcane loader is designed for efficient sugarcane loading and handling in tough field conditions. Powered by a 215 HP Cummins engine, it delivers strong and reliable performance for heavy-duty operations. With a 6100 mm dumping height, 6600 mm grapple reach, and a 1500 kg grab capacity, it enables fast and stable loading. High ground clearance and a robust structure ensure excellent mobility, durability, and productivity in muddy and uneven sugarcane fields.
Modelo :
LT9800Peso operacional :
1500kgODM/OEM :
Support
* Designed for Heavy-Duty Sugarcane Operations
Purpose-built for sugarcane loading, handling, and transport, delivering reliable performance in demanding field conditions.
* Powerful Grabbing System for Fast & Secure Handling
Reinforced cane grapple ensures a strong clamping force, stable handling, and higher loading efficiency with less material loss.
* Strong Power & Stable Hydraulic Performance
High-torque power system combined with responsive hydraulics enables smooth, continuous operation under heavy loads.
* Excellent Mobility in Rough Field Conditions
High ground clearance and large tires provide superior traction and stability in muddy, uneven sugarcane fields.
* Durable Structure with Low Maintenance Cost
Heavy-duty frame and strengthened key components ensure long service life and reduced downtime.
* Operator-Focused Design for Comfort & Safety
Spacious cab with wide visibility and ergonomic controls improves operating comfort, safety, and productivity.
1500kg compact sugarcane loader Technical Parameters
|
Sugarcane Loader Technical Specification |
|
|
Max dumping height |
6100mm |
|
Engine Model |
Cummins |
|
Rated Power |
215HP |
|
Total machine weight |
11300kg |
|
Grab capacity |
1500kg |
|
Max. grapple radius |
6600mm |
|
Overall Dimension |
7000*3750*4050mm |
|
Min. Ground clearance |
520mm |
|
Wheel base |
2790mm |
|
Distance Between Tires |
3100mm |
|
Front tire size |
24.5-32 |
|
Back tire size |
18.4-26 |
|
Min. turning radius |
7550mm |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
Strong & Reliable Manufacturing Capability
Quality and Safety Certifications
FAQ
Q: Is this machine specially designed for sugarcane operations?
A: Yes. It is purpose-built for sugarcane loading, handling, and transport, ensuring high efficiency and stable performance in cane fields.
Q: Can the machine work in muddy or uneven field conditions?
A: Yes. With high ground clearance and strong traction, it performs reliably in muddy, soft, and uneven sugarcane fields.
Q: Is the sugarcane grapple strong enough for heavy loads?
Yes. The reinforced grapple providesa strong clamping force, allowing secure handling of large volumes of sugarcane.
Q: Is the machine easy to operate and maintain?
A: Yes. It features an operator-friendly cab and a durable structure, making daily operation and maintenance simple and cost-effective.
Q: Can the machine be used for other materials besides sugarcane?
A: Yes. It can also handle similar materials such as biomass, logs, and agricultural residues, increasing machine utilization.
