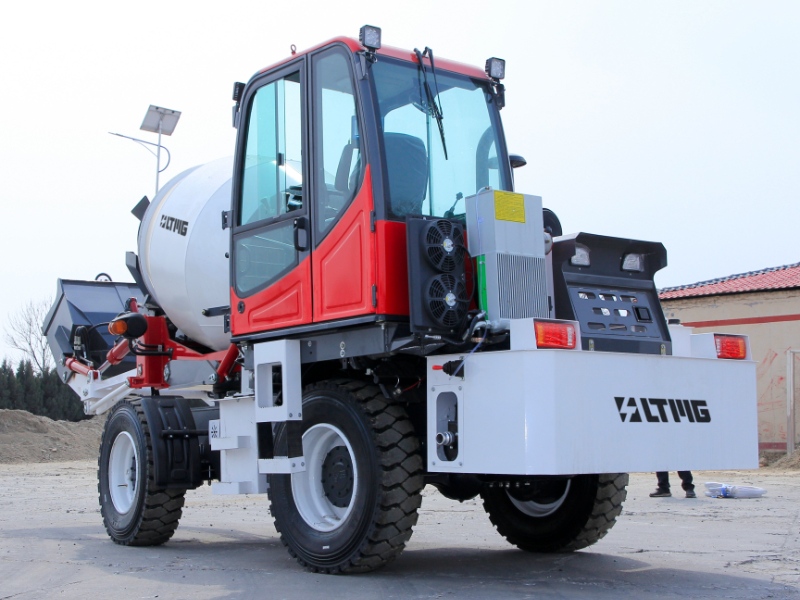

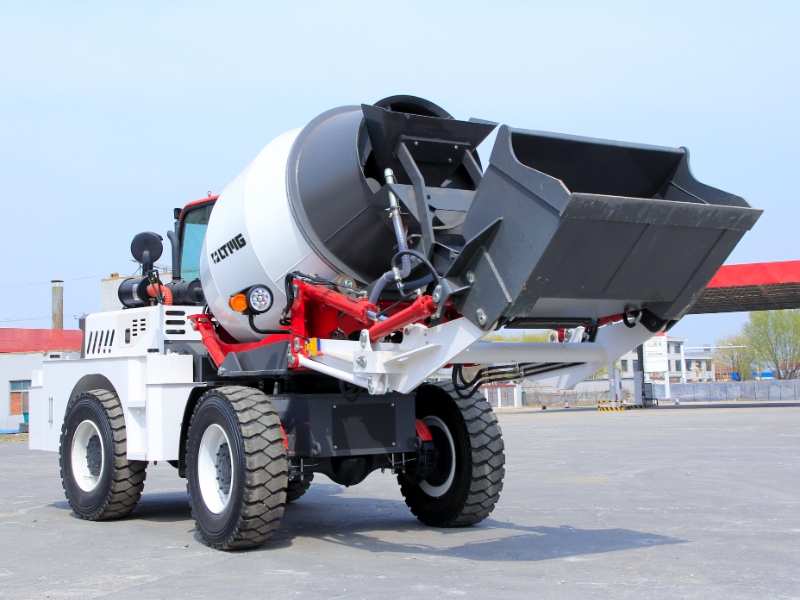

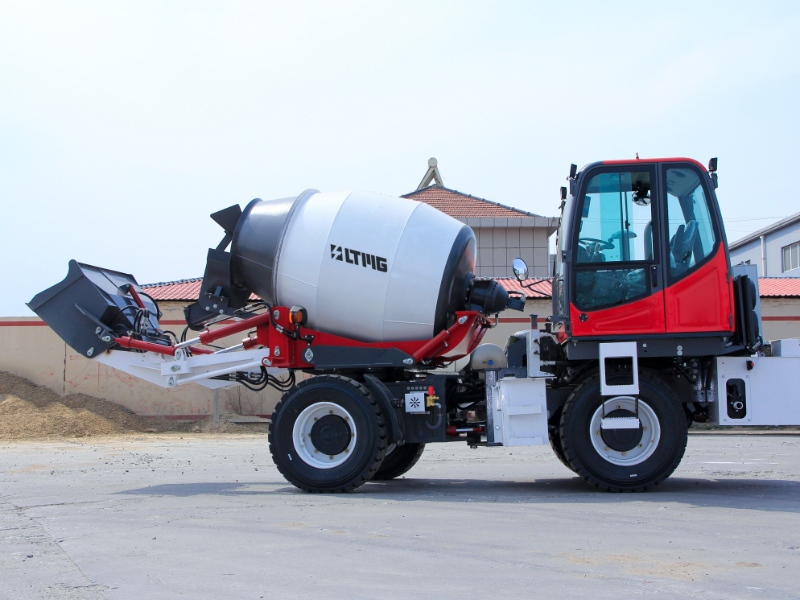

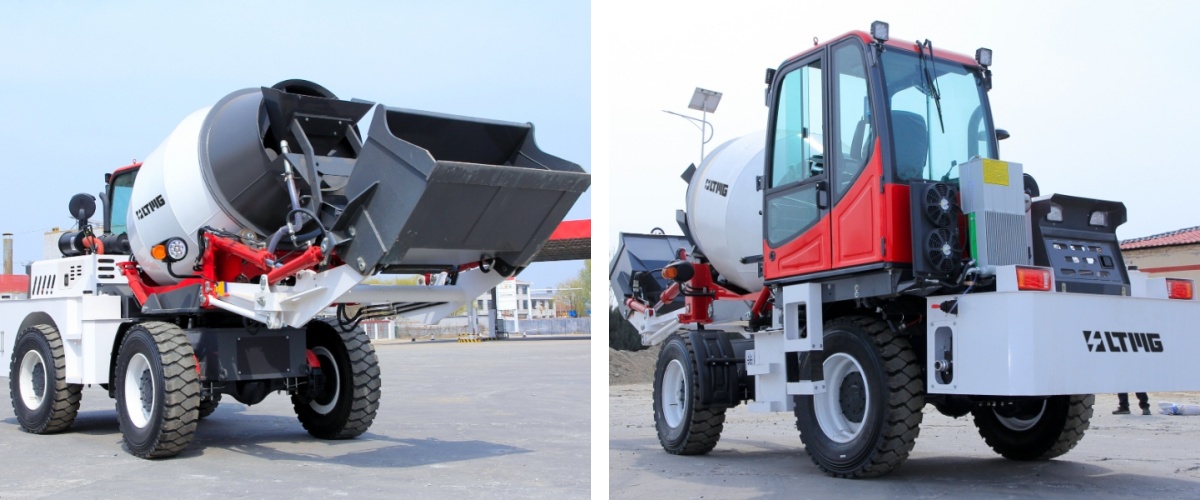

This 2m³ self‑loading concrete mixer truck features powerful diesel power, 280° flexible discharge and efficient loading‑water supply. Boasting comfortable cab and all‑weather adaptability, it delivers reliable performance for various complex construction sites.
Modelo :
LTM20Peso :
7500 KGComprimento largura altura :
5900×2400×3900 (Lifting arm) mm
Self Loading Mixer Technical Parameters
| Parameter | Unit | LTM20 |
| Vehicle Size (L × W × H) | mm | 5900×2400×3900 (Lifting arm); 7100×2400×2940 (Drop arm) |
| Wheelbase | mm | 2300 |
| Track Width | mm | 1710 |
| Overall Weight | kg | 7500 |
| Engine | / | YCD4M22T-105 |
| Power | kW | 77.3 |
| Gearbox | / | 280 integrated |
| Drive Axle | / | 2.0T Wheel side reduction axle |
| Tyre | / | 16/70 R22.5 |
| Capacity of Bucket | m³ | 0.5 |
| Stirring Capacity | m³ | 2 |
| Reduction Ratio | / | 1:28 |
| Rotate Speed | r/min | ≥15 |
| Reducer | / | Made in China |
| Running Speed | km/h | 35 |
| Shaft Number Traction Type | / | 4×4 |
| Water Tank Capacity | L | 620 |
| Diesel Tank Capacity | L | 120 |
| Hydraulic Tank Capacity | L | 100+26 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.

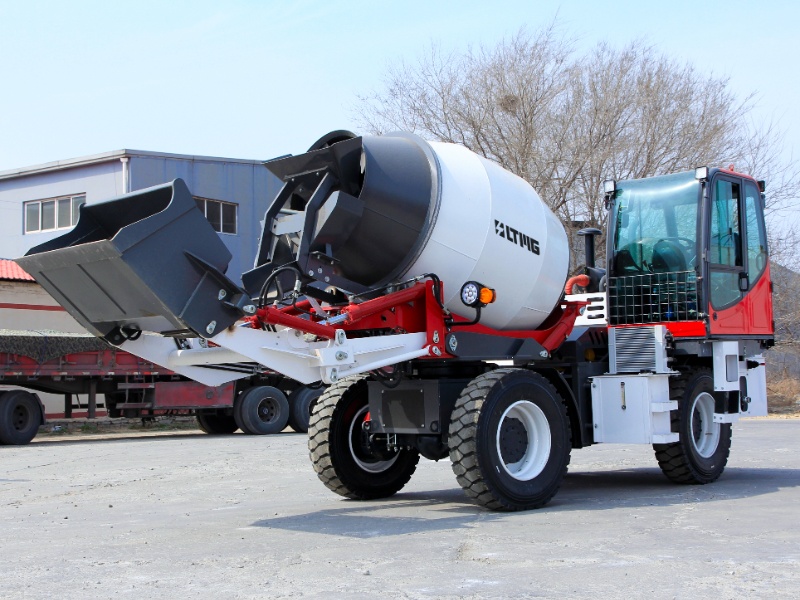

Self Mixing Concrete Truck Actual Work
The LTMG brand self mixing concrete truck is sold in many countries around the world. Customer satisfaction is increasing day by day. In the road construction and construction industries, LTMG's machines provide the best experience for each customer.
FAQ
A: Yes. Self-loading concrete mixers equipped with four-wheel drive, suitable off-road tires, high ground clearance, and durable axles can perform well on rough, muddy, or unpaved construction sites. However, actual performance depends on ground conditions, slope, load, and weather. On extremely soft or unstable ground, site preparation or additional traction measures may be necessary to ensure safe and efficient operation.
Q: What Daily Maintenance Does a Self-Loading Concrete Mixer Require?
A: Daily maintenance should include checking the engine oil, coolant, hydraulic oil, tire condition, lubrication points, water system, hydraulic hoses, bucket pins, and mixing drum operation. Regular cleaning and lubrication are also essential because the self-loading concrete mixer is frequently exposed to cement, aggregates, dust, and water. Proper daily maintenance helps reduce wear and prevent unexpected downtime.
Q: How Do I Clean the Mixing Drum of a Self-Loading Concrete Mixer?
A: The mixing drum and discharge system should be cleaned immediately after operation, before residual concrete starts to harden. Clean water should be used to flush the drum and discharge components thoroughly. If concrete is allowed to build up inside the drum, it can reduce effective mixing capacity, increase the machine's operating weight, and accelerate wear or damage to the mixing blades and drum.
Q: Can a Self-Loading Concrete Mixer Be Driven on Public Roads?
A: Whether a self-loading concrete mixer can be driven on public roads depends on local regulations regarding vehicle registration, roadworthiness, dimensions, operating weight, and road use. Before purchasing or operating the machine for road travel, buyers should confirm the applicable requirements with the relevant local authorities to ensure the selected model complies with local regulations.
