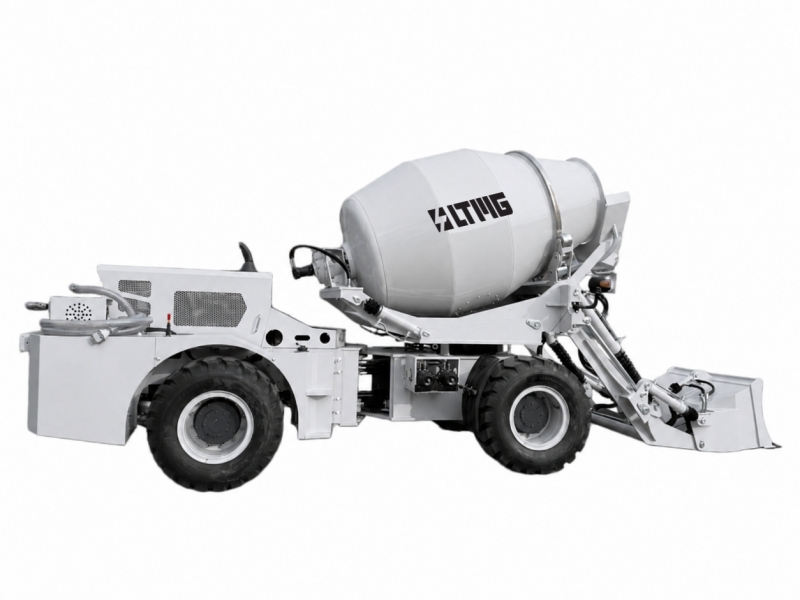

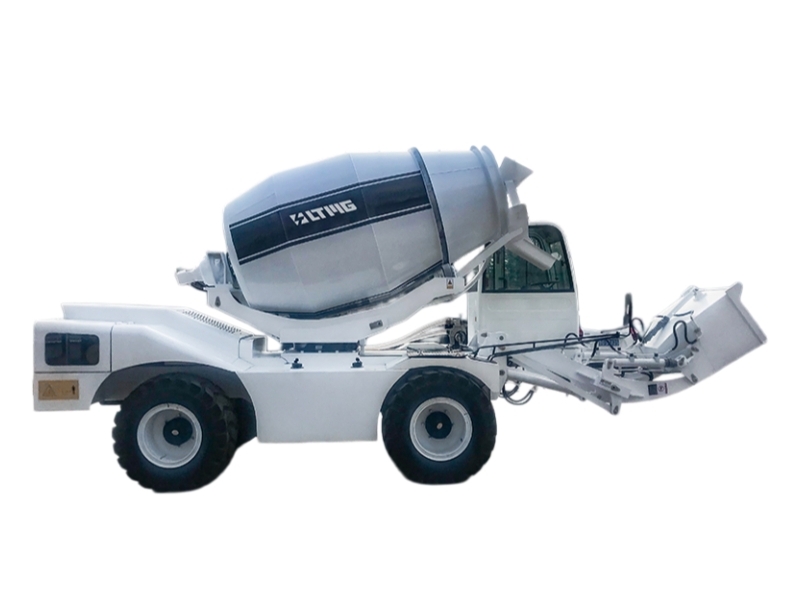

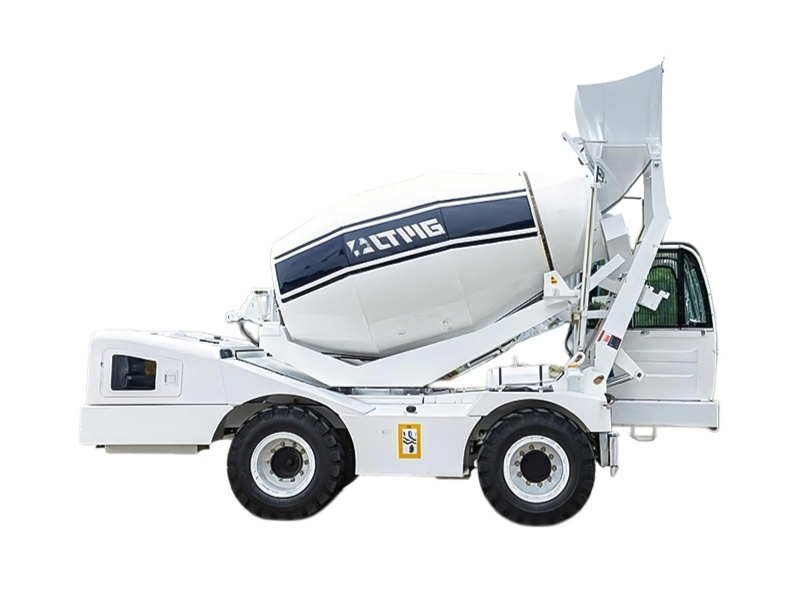

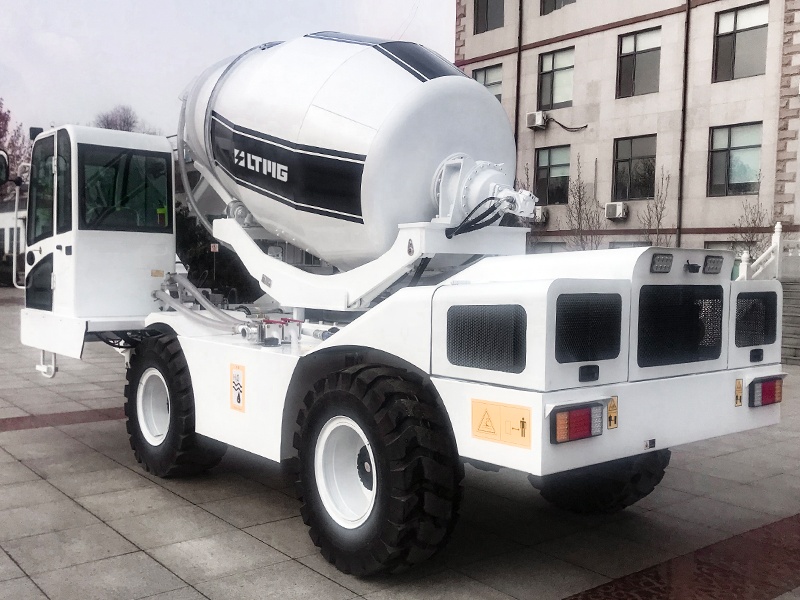

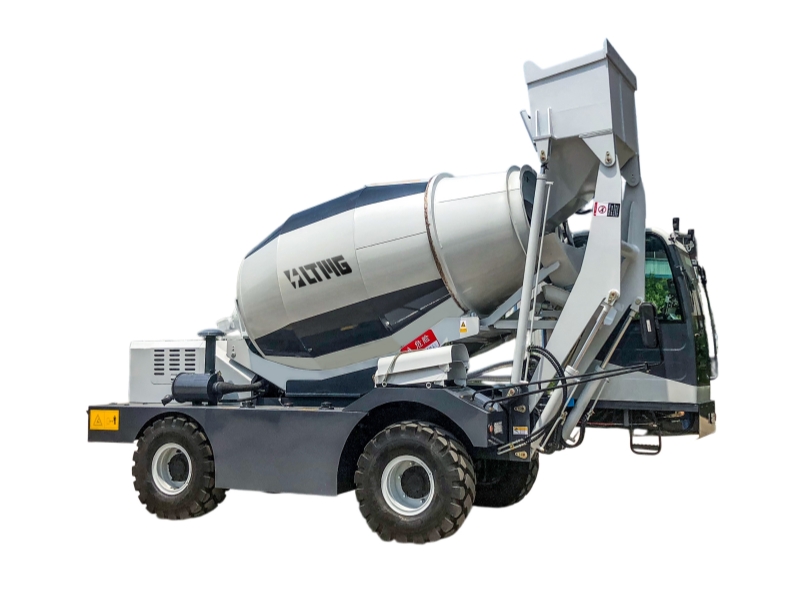

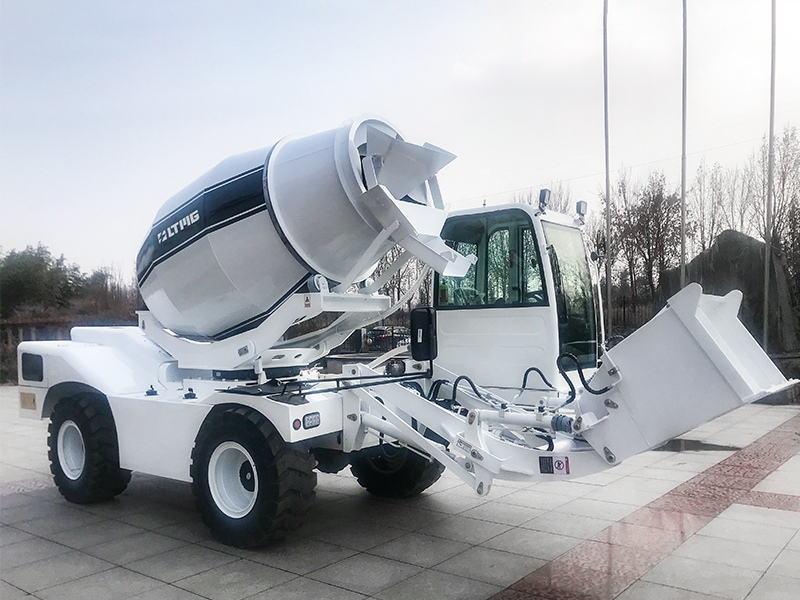

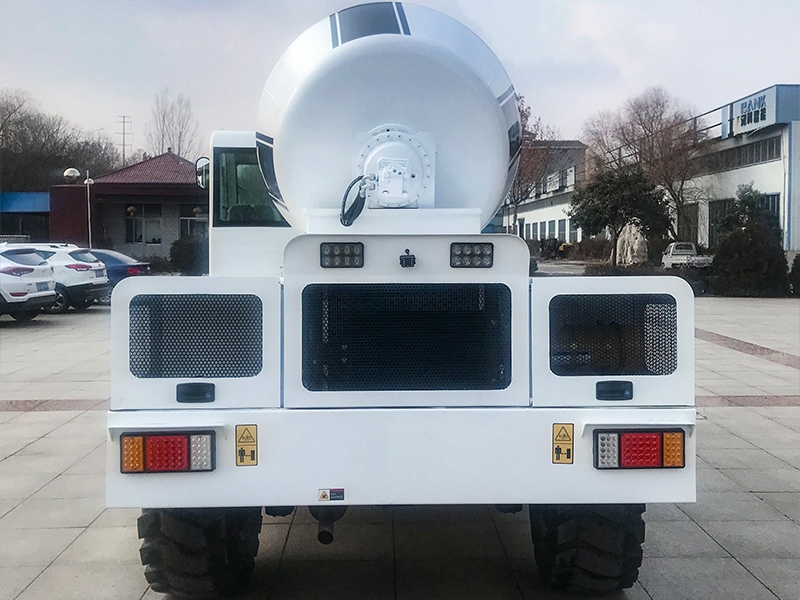

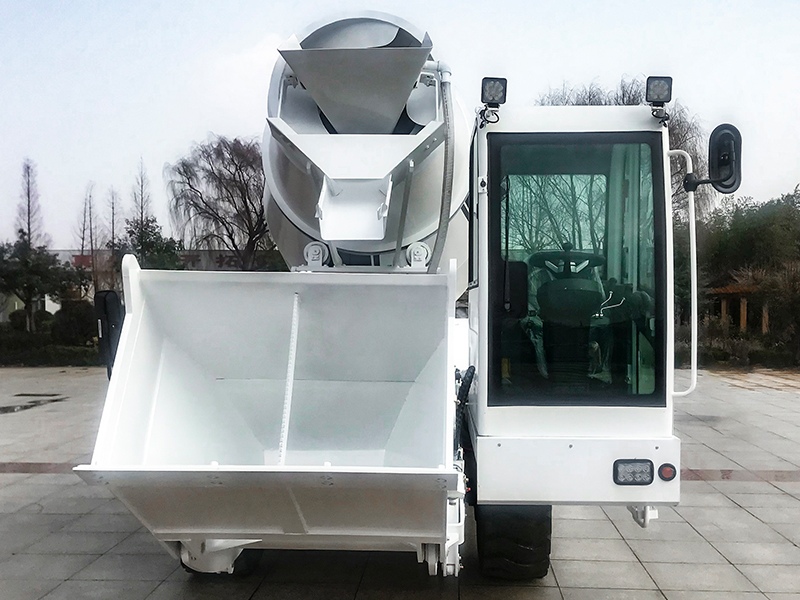

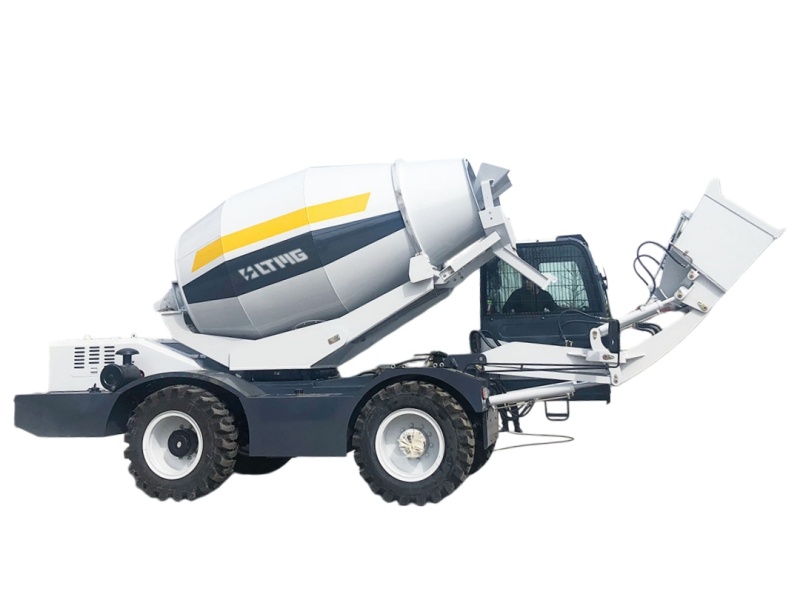

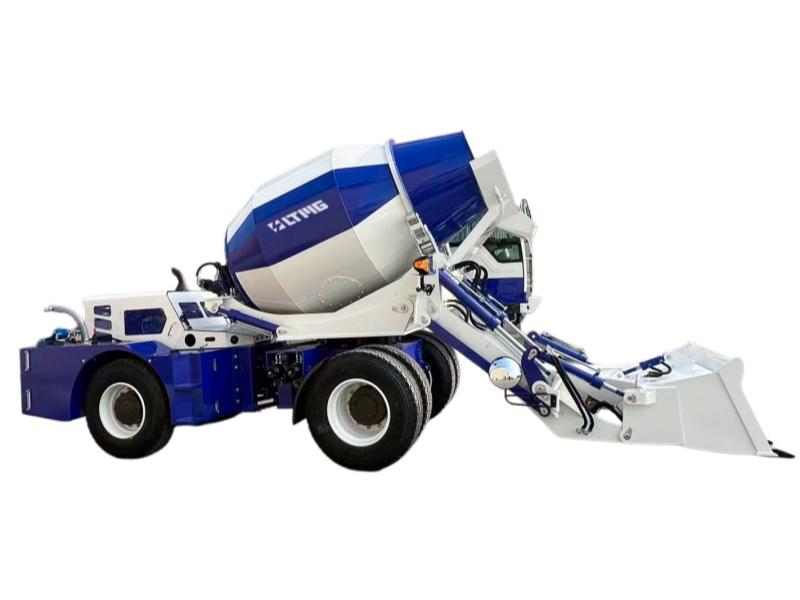

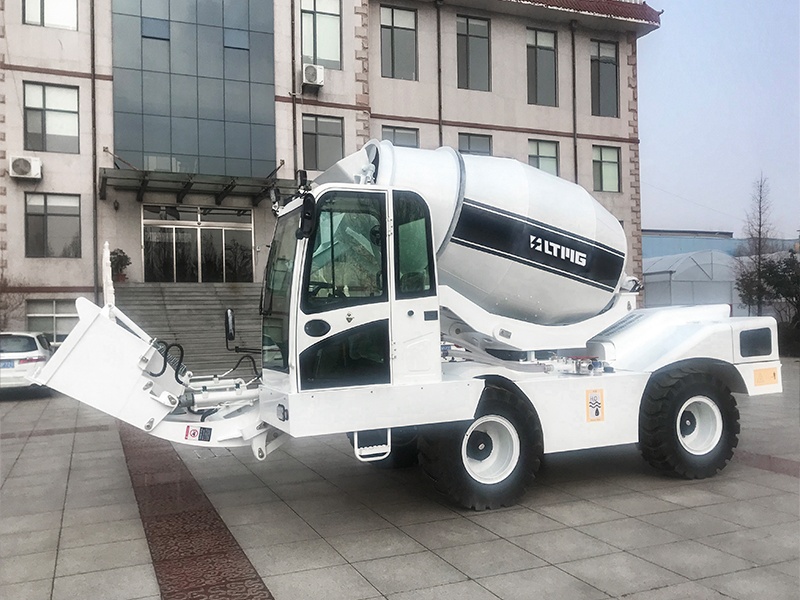

The LTM30 self-loading concrete mixer truck combines 3 m³ batch capacity, 12 m³/h output, automatic feeding and electronic weighing, 4×4 mobility, and 270° drum discharge. Its integrated loading, mixing, transport, and discharge functions reduce labor and handling time, making it ideal for road, housing, and infrastructure construction.
Modelo :
LTM30Peso :
7450 KGODM/OEM :
ProvidedOutput per Batch :
3
Concrete Mixer Truck Product Features
| Parameter | Unit | LTM30 |
| Type | / | Integral frame chassis movable, self loading, mixing, transporting |
| Output per Batch | m³ | 3 |
| Batch Cycle Time | min/batch | ≤15 |
| Batches per Hour | batch/h | 4 |
| Hourly Output | m³/h | 12 |
| Operating Weight | kg | 7450 |
| Engine | / | Yuchai four-cylinder, intercooled turbo |
| Engine Speed | rpm | 2200 |
| Rated Power | kW | 85 |
| Drive Type | / | 4×4 |
| Steering Type | / | Rear wheels steering |
| High Speed | km/h | 36.5 |
| Low Speed | km/h | 6.5 |
| Gearbox | / | Four forwards, four backwards |
| Tire | / | 16/70-20 steel wire tyre |
| Drum Geometric Volume | m³ | 4.2 |
| Optimal Mixing Capacity | m³ | 2.6-3.0 |
| Drum Rotation / Discharge | ° | 270° tank rotation; no dead angle for discharging around the vehicle |
| Bucket Capacity | m³ | 0.35 |
| Bucket Discharge | / | Hydraulic gate, electric control |
| Operation Control | / | Electric control button four-way pilot handle |
| Water Supply | / | Hydraulic driving self-priming pump |
| Water Tank Capacity | L | 370 |
| Diesel Tank Capacity | L | 180 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

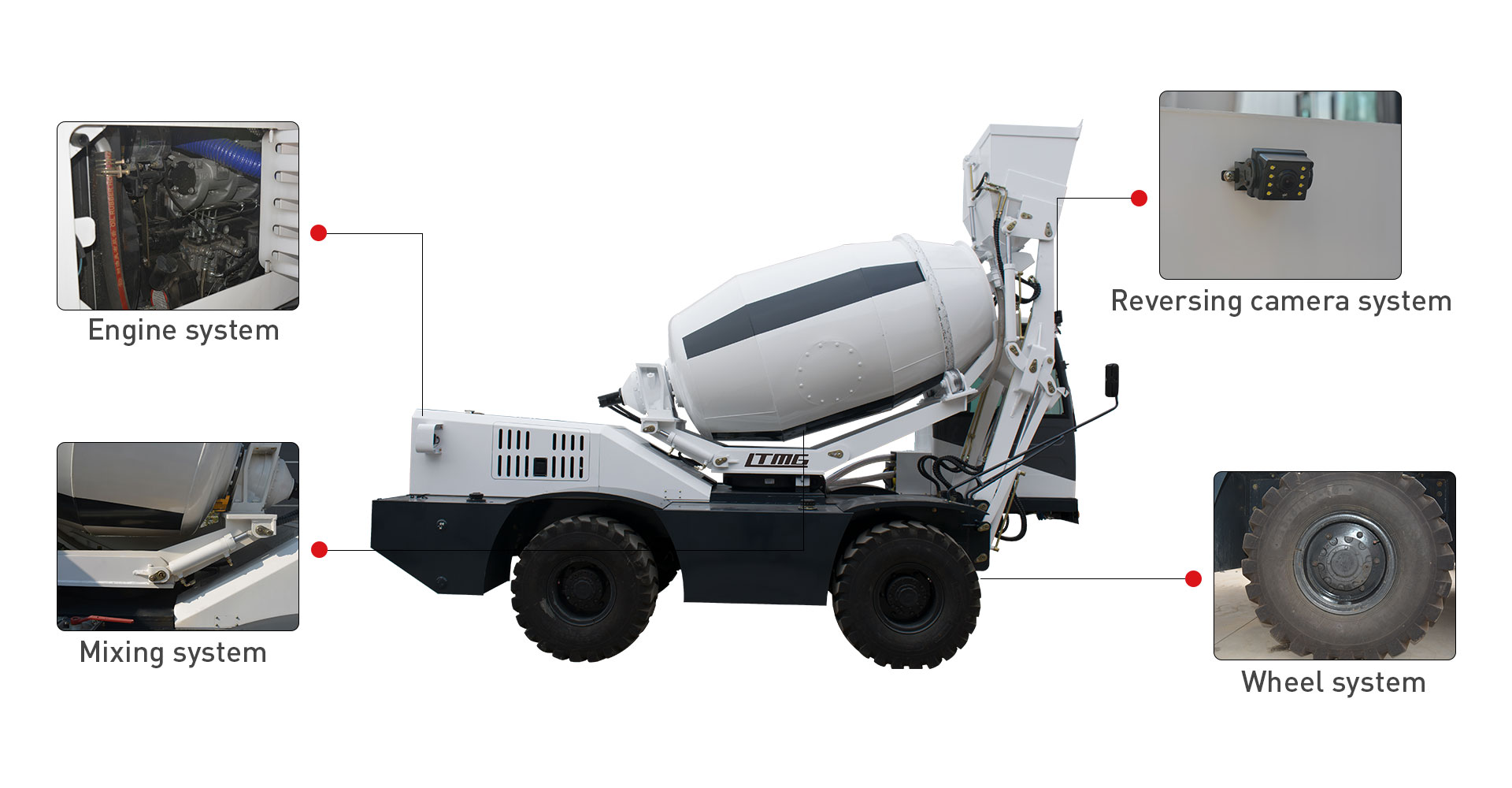

The Configuration System Of LTMG Self Loading Mixer
FAQ
Q: What is a self-loading concrete mixer, and how is it different from a regular concrete mixer truck?
A: A self-loading concrete mixer combines loading, weighing, mixing, transporting, and discharging in one machine. Unlike a regular mixer truck, it can load aggregates and cement by itself, reducing the need for a separate wheel loader or batching plant.
Q: How do I choose the right mixer capacity for my project?
A: Choose the capacity based on your required concrete output, site size, road conditions, and pouring schedule. Smaller models are better for narrow or remote sites, while larger models are more efficient for continuous concrete production and larger projects.
Q: Is the rated drum capacity the same as the actual concrete output per batch?
A: Not always. Drum volume and actual concrete yield are different concepts. The usable output per batch depends on the machine design, mix ratio, material density, and operating conditions. Always confirm the actual concrete output per batch when comparing models.
Q: Can a self-loading mixer work without a batching plant?
A: Hourly output depends on mixer capacity, loading distance, operator efficiency, and mixing time. In practice, production should be calculated based on the complete cycle time, including loading, weighing, mixing, driving, discharging, and returning for the next batch.
